Trek X-Caliber 9 Special Issue Service

Trek X-Caliber 9 Special Issue Service
This item is currently not available.

Details

The X-Caliber special edition is a bike built for those dedicated to serving the public, supporting our communities, and preserving our natural resources. It’s made in Trek's tradition of quality and dependability, with parts that perform on both the trail and road.

A lightweight alloy frame, a 12-speed Shimano Deore drivetrain with a wide range of gears for climbing, a high-quality RockShox Judy SL suspension fork with 100mm of travel, a dropper post for easier mounts and dismounts, fast-rolling 29? Bontrager wheels, and hydraulic disc brakes for all-weather stopping power.

Specs

Frame Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR
Fork RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 46mm offset, 100x5mm QR, 100mm travel
Headset Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom
Rear Shock n/a
Rims/Wheels Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve
Hubs REAR: 1Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost141, 5mm QR, FRONT: Bontrager alloy, sealed bearing, 6-bolt disc, 100x5mm QR
Spokes stainless steel
Tires Bontrager XR3 Comp, wire bead, 30tpi, 29x2.20"
Crankset Shimano MT511,
Chainwheel 32T steel ring
Bottom Bracket Shimano SM-BB52, 73mm, threaded external bearing
Chain Shimano Deore M6100, 12 speed
Front Derailleur n/a
Rear Derailleur Shimano Deore M6100, long cage
Rear Cogs Shimano Deore M6100, 12 speed 10-51t
Shifters Shimano Deore M6100, 12 speed
Handlebars Bontrager alloy, 31.8mm, 5mm rise, 720mm width
Tape/Grips Bontrager XR Endurance Comp, lock-on
Stem Bontrager Elite, 31.8mm, Blendr compatible, 7 degree
Brake Levers Shimano hydraulic disc, MT4100 lever
Brakes Shimano hydraulic disc, MT410 caliper
Pedals Wellgo platform, alloy body
Saddle Bontrager Arvada, steel rails, 138mm width
Seat Post TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length
Seat Binder alloy clamp 4mm bolt

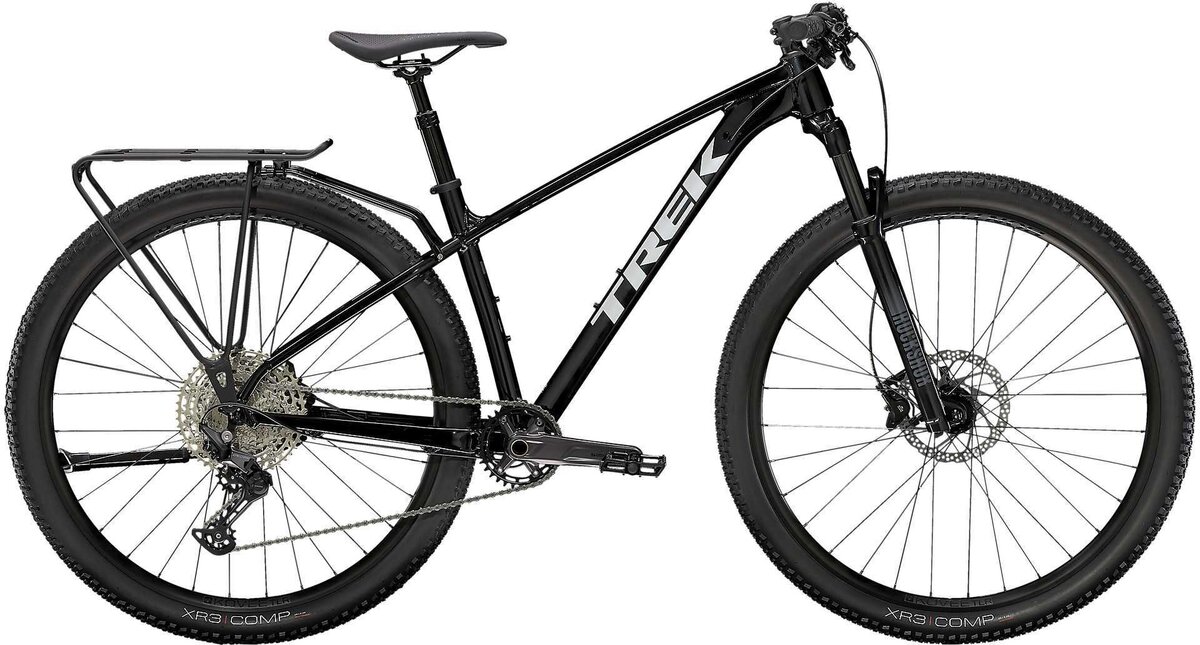

Accessories & Extras Optional Kickstand and rear rack shown in photo, can be purchased separately.
Color(s) Trek Black
Sizes small 16", medium 17.5", large 19.5", x-large 21.5"
Weight 32.9# w/tubes

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
small 16" 601842409718 1048051
medium 17.5" 601842409701 1048052
large 19.5" 601842409695 1048053 1048053
x-large 21.5" 601842409688 1048054
