All-City Cosmic Stallion Frameset

All-City Cosmic Stallion Frameset
This item is currently not available.

Details

PERFORMANCE GRAVEL ALL-STAR
The ultimate gravel bike for chasing PRs and podiums on race day, and all the training rides that get you there.

LIVELY, SPIRITED, STABLE
Perfectly capable of flying fast down the tarmac, the Cosmic Stallion really shines when things get rough. Quick, efficient, and designed for gravel riding and racing, we’re yet to find a bike that does a better job at soaking up road chatter and jealous stares.

A.C.E. TUBING

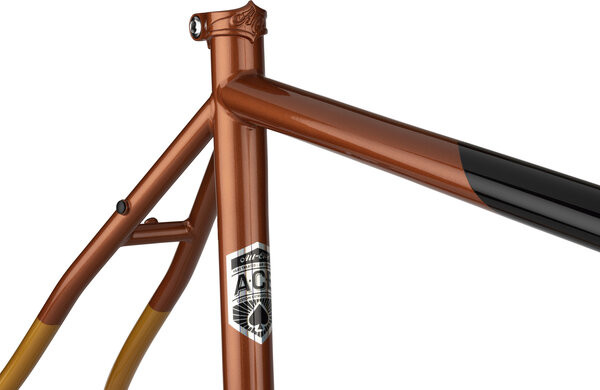

Painstakingly crafted from our proprietary heat-treated, air-hardened, and custom-extruded A.C.E. steel tubing, there’s nothing else like it on Earth. Learn more about A.C.E. Tubing.

WHISKY NO.9 CX Disc 12 Tapered Fork
Lightweight with generous tire clearance and precise handling capabilities, Whisky’s gorgeous carbon fork accommodates 12mm thru-axles and flat-mount disc brakes.

TIRE CLEARANCE
Built with versatility in mind, it accommodates tire sizes 700 x 42mm or 650b x 47mm (both with or without fenders).

REAR RACK AND FENDER MOUNTS
Ready to run mudguards with the ability to mount a bag or two in the back to keep you comfy on those long rides.

CUSTOM DROPOUTS
All-City’s signature engraved logo shines with classic style.

SIGNATURE SEAT COLLAR
Train your eyes on that timeless and tasteful brazed-on seat collar, elegantly designed around the All-City logo.

REINFORCED BOTTLE BOSSES
Beautiful stars reinforce the bottle bosses and our obsessive attention to detail.

LIQUID PAINT AND E.D. COAT
Our topnotch wet paint finish sparkles with depth and luster, while an E.D. coating protects against rust.

PANTOGRAPHED BOTTOM BRACKET
Upside-down and inside-out, AC’s signature style is stamped into the steel.

Geometry Chart:
Size46cm49cm52cm55cm58cm61cm
Head Tube Angle 70 71 71.3 72.2 72.2 72.2
Seat Tube Angle 75 74.5 73.7 73.5 73 72.5
Top Tube Length 510 530 545 560 580 610
Seat Tube Length 450 480 510 540 570 600
Chainstay Length 436 441 446 446 446 446
Bottom Bracket Drop 73 73 73 73 73 73
Fork Offset 45 45 45 45 45 45
Total Fork Length 395 395 395 395 395 395
Head Tube Length 95 110 124 149 173 198
Standover 744 767 790 818 844 872
Wheelbase 1005 1017 1028 1032 1047 1071
Stack 518 536 550 577 600 624
Reach 371 381 384 389 397 413
Handlebar Width 400 420 420 440 460 460
Stem Length 60 70 80 90 100 110
Crank Arm Length 165 170 172.5 172.5 175 175

WARNING: Cycling can be dangerous. Bicycles and bicycle products should be assembled and serviced by a professional mechanic. Never modify your bicycle or accessories. Read and follow all product instructions and warnings including information on the manufacturer’s website. Inspect your bicycle before every use. Always wear a helmet.

Specs

Frame All-City A.C.E. Air-Hardened, Custom, Extruded steel
Fork Whisky No.9CX Disc 12 Tapered

* Subject to change without notice.
