All-City Cosmic Stallion Frameset

All-City Cosmic Stallion Frameset
This item is currently not available.

Details

All-Road Endurance Thoroughbred
The ultimate bike for quickly covering gravel, conquering busted-up fire roads, and powering through the most ambitious centuries.

Lively, Spirited, Stable
Perfectly capable of flying fast down the tarmac, the Cosmic Stallion really shines when things get rough. Quick, efficient, and designed for all-road riding and racing, we’re yet to find a bike that does a better job at soaking up road chatter and jealous stares.

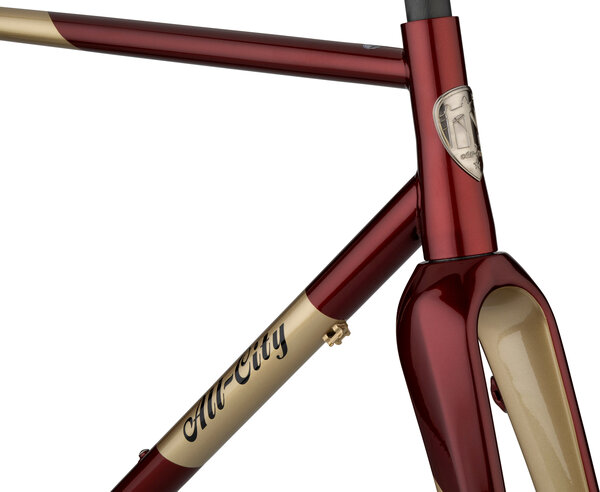

A.C.E. Tubing
Painstakingly crafted from our proprietary heat-treated, air-hardened, and custom-extruded A.C.E. steel tubing, there’s nothing else like it on Earth.

Columbus Futura Cross Carbon Fork
Designed for stability on uneven and slippery surfaces, the gorgeous carbon fork accommodates 12mm thru-axles and flat-mount disc brakes

Tire Clearance
Built with versatility in mind, it accommodates tire sizes 700 x 47mm without fenders (700 x 43mm with fenders), or 650b x 42mm.

Di2 Routing Options
Outfitted to make your dreams of accurate and effortless electronic shifting a hassle-free reality.

Rear Rack And Fender Mounts
Ready to run mudguards with the ability to mount a bag or two in the back to keep you comfy on those long rides.

Custom Dropouts
All-City’s signature engraved logo shines with classic style.

Signature Seat Collar
Train your eyes on that timeless and tasteful brazed-on seat collar, elegantly designed around the All-City logo.

Reinforced Bottle Bosses
Beautiful stars reinforce the bottle bosses and our obsessive attention to detail.

Liquid Paint And E.D. Coat
Our topnotch wet paint finish sparkles with depth and luster, while an E.D. coating protects against rust.

Specs

Frame All-City A.C.E. Air-Hardened, Custom, Extruded steel; Tire Size Range: 700 x 32~47mm, 650b x 38~42mm
Fork Columbus Futura Cross, carbon with carbon steerer; 47mm or 52mm fork offset; Tire Size Range: 700 x 32~47mm, 650b x 38~42mm
Hubs Front Hub Spacing (OLD): 100 x 12mm; thru-axle
Rear Hub Spacing (OLD): 142 x 12mm; thru-axle
Axles Front: Thru Axle Size M12 x 132L, TP = 1.5, TL = 12
Rear: Thru Axle Size 12 x 167mm , TP = 1.5, TL = 12
Tires Tire Size Range Frame: 700 x 32~47mm, 650b x 38~42mm
Bottom Bracket Bottom Bracket: 68mm English
Crankset Crankset (Max Ring): 1x: 52t max // 2x: 53/39t max // 3x: 52/39/30t max
Rear Derailleur QBP Derailleur Hanger: 687 black (FS2339)
Brakes Brake Mount Type: Flat Mount; 30mm mounting barrels
Rotors Rotor Size(s): 140mm to 160mm
Stem Stem Clamp (SHIZ): 28.6mm
Seatpost Seatpost Diameter: 27.2mm; Seat Collar: All-City Signature Brazed-On
Accessories & Extras Bottle Mounts: Two inside frame, one under down tube, all sizes / Extras: Mounts for rear rack and front & rear fenders, E.D. coated for durability and rust prevention

* Subject to change without notice.
